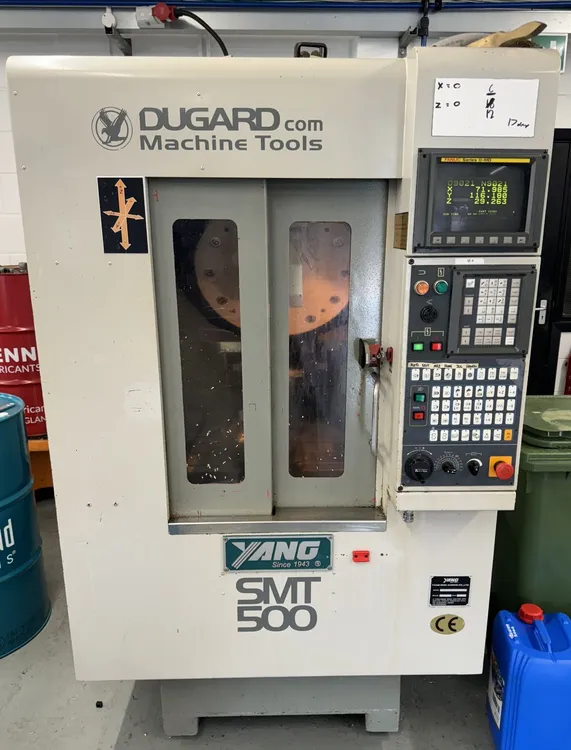

Dugard Yang SMT 500

Description

Dugard Yang SMT 500, Drill and Tap Machining Center, Fanuc O-MD Control,

Specification
X Axis Traverse 420mm
Y Axis Traverse 320mm
Z Axis Traverse 228mm
Table Size 430 x 290mm
Maximum Table Load 100Kg
Spindle Centre to Table Surface 100 – 328mm
Rapid Traverse Rates 30m/min. X/Y/Z
Max. Programmable Feed Rates all Axes 10m/min.
Spindle Power 2.2/3.7kW
Speed Range 8,000rpm
Spindle Taper ISO 30
Bi-Directional Auto Toolchanger 12 Station
Maximum Tool Diameter 75mm
Maximum Tool Length 200mm
Maximum Tool Weight 3Kg
Machine Weight 1,440Kg

Footprint - 1100mm Left to Right x 2060mm Front - Back x Height 1980mm (plus 250mm with cables) - Note this is a parked position and max working height requires checking if clearances are critical.
