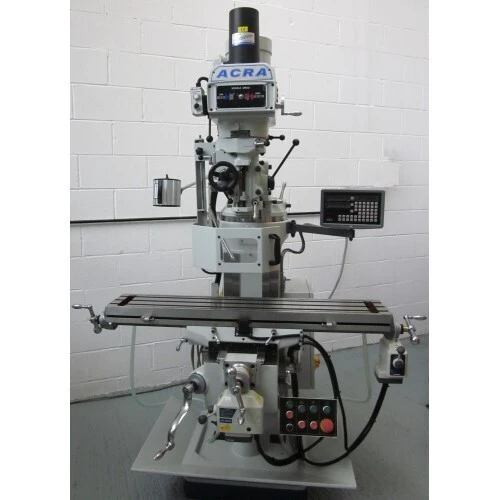

ACRA FM-2V TURRET MILLING MACHINE
Have one to sell?
1 available
New
STANDARD FEATURES
• Auto Lubrication system
• Interlocked Chuck Guard
• Powered Feeds x and Y
• Lo Vo Lamp
• Tools, Toolbox And Operation Manual
• Precision Hardened & Chrome Plated Quill
• Hardened And Ground Column Slide Ways
• Built In Coolant Tank In base Of Machine
3 Axes DRO
Power Air Draw Bar
Power Feeds
Table - 230 x 1244mm
Longitudinal Travel - 750mm
Cross Travel - 305mm
Vertical Travel (Knee) - 305mm
Table T Slots (3) 16mm
Max Workpiece Weight 340kg
Vertical Spindle Motor 3HP
Spindle Speeds 50Hz 50-3750rpm
Spindle Taper - R8
Spindle Nose To Table - 42-469mm
Quill Travel 127mm
Automatic Vertical Feeds (Per Revolution) - 0.04, 0.08, 0.14mm
Head Swivel - (Left & Right) 90deg, (Front to Back) 45deg
Weight 1080kgs (Approx)
Floor Space (LxHxW) 2197 x 2600 x 2000mm
Sound Pressure Level - below 80dB
